Heavy Duty Stainless Steel 316 Honeycomb Mesh Conveyor Belt with Baffle

Heavy Duty Stainless Steel 316 Honeycomb Mesh Conveyor Belt with Baffle

Nom De Marque: PFM
Numéro De Modèle: PFM-CB356
Nombre De Pièces: 1 mètre
Prix: Négociable
Conditions De Paiement: L/C,T/T,Western Union,Paypal,Assurance commerciale
Capacité à Fournir: 300 mètres par mois
Informations détaillées
Lieu d'origine:
Hebei, Chine
Certification:
SGS
Matériel:
Acier inoxydable, acier au carbone
Plage de fil plat:
25,4 mm
Pas de tige:
25,4 mm
Diamètre de la tige:
5,0 mm
Taille de fil plat:
1.2 mm*14.1 mm
Échantillon:
Disponible
Détails d'emballage:
Sac en plastique à l'intérieur et boîtier en contreplaqué à l'extérieur ou selon vos besoins.
Mettre en évidence:

stainless steel 316 conveyor belt

,

honeycomb mesh conveyor belt

,

heavy duty wire mesh belt

Description du produit

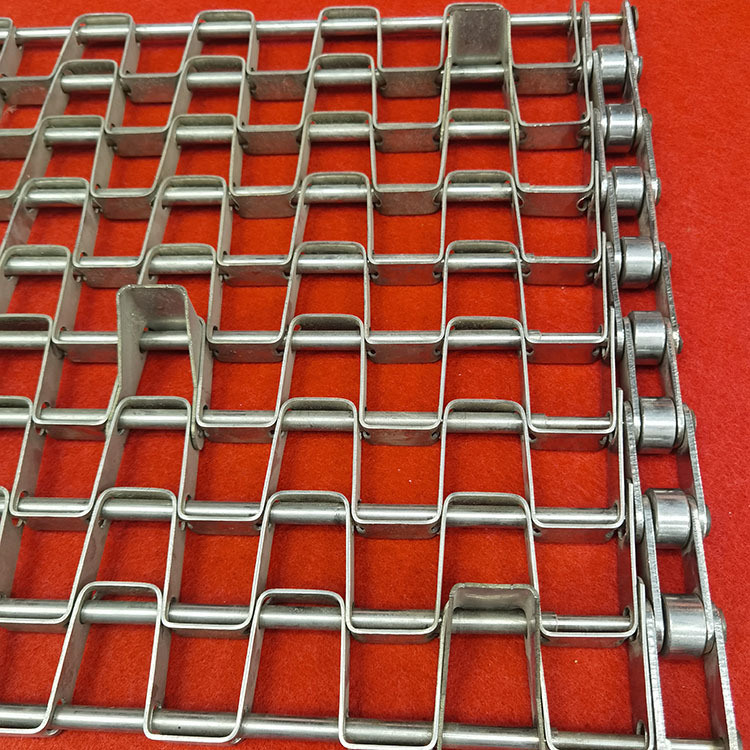

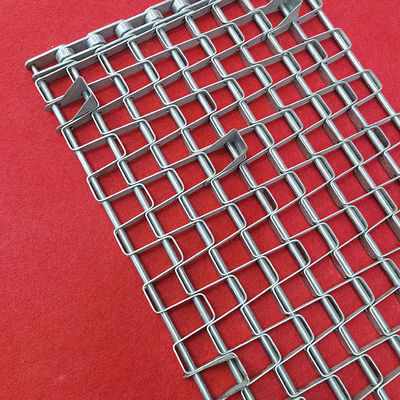

Heavy Duty Stainless Steel 316 Honeycomb Mesh Conveyor Belt with Baffle
Description
Flat wire conveyor belt is also called honeycomb conveyor belt or flat plate conveyor belt. The flat plates are arranged in the form of lattice and joined with straight rods. Customers can request chains, side plates, or both attached to the belt's sides. The side plates prevent goods from falling, while chains drive the belt.
Specification
Material stainless steel, carbon steel
Width customized
Length customized
Flat wire pitch 12.7, 14, 15, 16, 18, 24, 25.4 mm
Rod pitch 13.7, 19.05, 25.4, 27 mm
Rod diameter 3.0, 4.0, 5.0 mm
Flat wire size 1.2x9.5, 1.2x14.1, 1.5x12.7, 1.5x14.1 mm
Features
  • Positive sprocket drive ensures stable running
  • Larger open area provides high air permeability
  • Easy to wash and maintain
  • Smooth surface carries unstable products securely
  • Suitable for curved conveyor applications (CFW)
Applications
  1. Conveyor machines
  2. Frying facilities
  3. Annealing furnaces
  4. Refrigeration facilities
  5. Cleaning machines
  6. Drying ovens
  7. Food transport
  8. Baking
  9. Cooling and freezing
  10. Steaming and drying
