Polyester Wire Mesh Belt Plain Square Hole Open Dryer Mesh Conveyor Belt for Paper Mills

Polyester Wire Mesh Belt Plain Square Hole Open Dryer Mesh Conveyor Belt for Paper Mills

Nom De Marque:	COMESH
Numéro De Modèle:	CAR-36
Nombre De Pièces:	1 mètre carré
Conditions De Paiement:	LC, T/T, Western Union, Paypal, assurance commerciale
Capacité à Fournir:	2000 mètres carrés par quart

Informations détaillées

Description du produit

Informations détaillées

Lieu d'origine:

Hebei, Chine

Certification:

FDA

Matériel:

100 % polyester

Type de tissage:

Armure toile

Couleur:

Blanc, bleu

Nom:

Bande transporteuse ouverte de maille de dessiccateur de trou carré simple de ceinture de grillage d

Longueur:

S'accorder pour faire votre demande

Taille:

taille adaptée aux besoins du client

Application:

Industrie du papier/machine à couches

Commun:

Anneau à broches, clip en acier en spirale, couture sans fin

Bord:

Bord thermique, bord de colle, bord de toile.

Détails d'emballage:

Sachet en plastique Inaide et caisse de contreplaqué en dehors ou selon de vos besoins.

Mettre en évidence:

polyester wire mesh conveyor belt

square hole dryer mesh belt

paper mill conveyor mesh belt

Description du produit

Polyester Wire Mesh Belt Plain Square Hole Open Dryer Mesh Conveyor Belt for Paper Mills

Polyester plain weave belt is used as a carrier belt for drying within the printing and textile industry and also used as
dewatering belts for fruit and vegetables in the food industry. These materials are also found in separation and filtration
applications like water treatment plants and flour mills.
We are a professional manufacturer of polyester mesh belts, producing a wide range of specialized polyester mesh belts, including sludge dewatering mesh belts, paper forming mesh belts, paper drying mesh belts, tea withering mesh belts, belt filter press mesh belts, vacuum conveyor mesh belts, power plant desulfurization filter cloths, vacuum drying mesh belts, composite machine mesh belts, non-woven fabric mesh curtains, food drying conveyor mesh belts, and more. These products are widely used in MDF production, power plant desulfurization, tailings dry discharge, sewage treatment, juice pressing, and in industries such as papermaking, food, pharmaceuticals, and tea.

Description:

The polyester linear screen cloth mesh belts cloth is made out by high viscosity Polyester monofilament yarn, and weaving in 1:1 plain weave to get uniform and defined mesh opening, which makes the polyester mesh belts in high separation efficiency and optimum filtration effects. Furthermore, our linear screen filter belts are all being thermal setting to get high lateral stability and optimum running properties. Our Screen’s linear screen polyester mesh belts have a wide range of aperture size to meet the various application respectively, blue and white color both available.

Advantage:

The nature of polyester belting is such that it offers a very durable long lasting media for extended life.
Strong polyester fibres provide excellent stability.Material Properties
1) Excellent chemical, thermal and high permeability for ease of cleaning.
2) Food approval: USFDA approval.
3) Working temperature: +150°C to -75°C in dry conditions. 70°C+ in wet conditions (polyester can suffer from hydrolysis in hot,humid conditions, typically in the presence of steam)

Polyester Wire Mesh Belt Plain Square Hole Open Dryer Mesh Conveyor Belt for Paper Mills Specification:

Weaving Type	Model	Thread Diameter		Density(No.s/cm)		Strength ((N/cm)	Air Permeability (m3/m2h)
		(mm)		Density(No.s/cm)
		Warp	Weft	Warp	Weft
2-shed plain weaving	05802	0.75	0.8	4.7-5	4.8-5	940	20000
	05102	1	1	4.7-5.2	4.3-5	1600	15000
	06702	0.7	0.7	8	7	1600	11000
	07102	0.7	1	6.6-7	4.3-4.6	1100	15000
	08552	0.55	0.55	7.5-8	8.5-9	850	850-6500
	09452	0.45	0.45	10	8.6	1600	16000
	09502	0.5	0.5	8.5-9	10-10.5	750	10000
	12502	0.5	0.5	13.5	8.5	1800	6500
3shed plain weaving	8603	0.5	0.6	10	9	1600	14000
	8903	0.9	0.9	7.8-8	5-5.5	2100	7500-8500
	7803	0.7	0.8	8	8	1600	10000
	20353	0.3	0.35	22	14.5	1200	13000

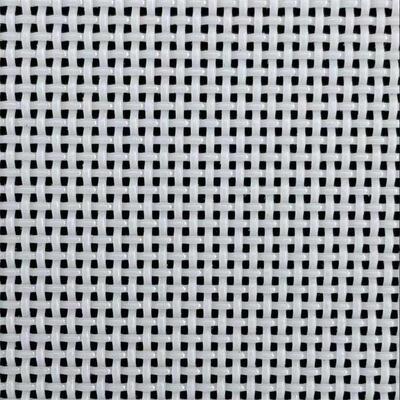

Polyester Wire Mesh Belt Plain Square Hole Open Dryer Mesh Conveyor Belt for Paper Mills 0

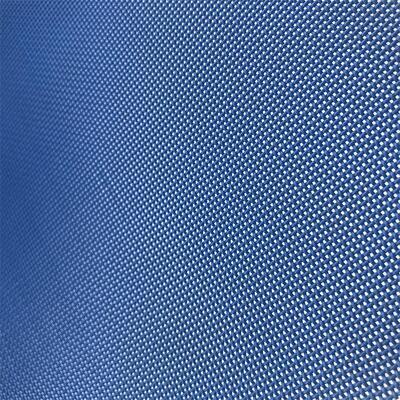

Polyester Wire Mesh Belt Plain Square Hole Open Dryer Mesh Conveyor Belt for Paper Mills 1

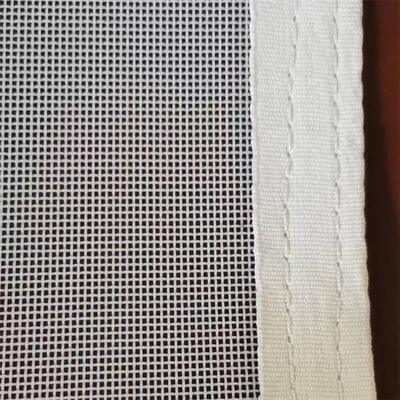

Polyester Wire Mesh Belt Plain Square Hole Open Dryer Mesh Conveyor Belt for Paper Mills 2

Polyester Wire Mesh Belt Plain Square Hole Open Dryer Mesh Conveyor Belt for Paper Mills 3
