201 304 Stainless Steel Reversed Twill Dutch Weave Wire Mesh Extruder Screen Belt Filter Belt for Continuous Screen Changer

201 304 Stainless Steel Reversed Twill Dutch Weave Wire Mesh Extruder Screen Belt Filter Belt for Continuous Screen Changer

Nom De Marque:	Comesh
Numéro De Modèle:	CAR-0025
Nombre De Pièces:	50meers
Prix:	Négociable
Conditions De Paiement:	T/T, Western Union,
Capacité à Fournir:	800 petits pains par mois

Informations détaillées

Description du produit

Informations détaillées

Lieu d'origine:

Chine

Certification:

SGS

Nom:

Ceinture filtrante en acier inoxydable 201 304, tissage néerlandais en sergé inversé, pour extrudeus

Matériel:

Acier inoxydable 201,304,316L

Largeur:

10cm, 12cm, 12.7cm, 15cm, 20cm

Engrener:

72/15,152/30,152/24,260/40

Caractéristiques:

De haute qualité, longévité, robustesse

Longueur:

10meters, 15meters, 20meters

Application:

machines à dessiner des fils en plastique, machines à couler des films et machines à revêtir des fil

taper:

tamis à mailles, disque filtrant à mailles

Usage:

Filtration de matière fondue dans l'industrie du plastique

Détails d'emballage:

L'intérieur de papier d'emballage, plywooden le cas dehors

Mettre en évidence:

304 stainless steel wire mesh filter belt

reversed twill dutch weave extruder screen

continuous screen changer wire mesh belt

Description du produit

201 304 Stainless Steel Reversed Twill Dutch Weave Wire Mesh Extruder Screen Belt Filter Belt for Continuous Screen Changer

Continuous belt screens, refer to reverse dutch weave filter belts made of stainless steel wires. The continuous (automatic) belt screens are the innovation of extruder screens. They are used for screening impurities out of molten plastic. Used with screen changers, the automatic belt filter system allows continuous and uninterrupted production and high filtering performance in cast film and blown film production and other plastic filtering processes.

Widely used as filter media in plastic wire drawing machines, stretch film machines, coating machine filters, plastic recycling filters, and polymer melt filtration.Filters for plastic, rubber and petroleum industries.Rub edges after slitting to help track automatic screen changers. High tensile warp for automatic screen changers in plastic extrusion industry.Automatic plastic extruder machine reverse dutch braid mesh belt.Reverse plain Dutch weave mesh is also used in applications requiring specific acoustic properties, mechanical robustness and high throughput filtration.

Description:

Name	201 304 Stainless Steel Reversed Twill Dutch Weave Wire Mesh Extruder Screen Belt Filter Belt for Continuous Screen Changer
Width	10cm,12cm,12.7cm,15cm,20cm
Mesh	260/40mesh,72/15mesh,152/30mesh,152/24mesh
Weave style	Reverse Dutch Weave
Keywords	Automatic Band Filter Screen Belt/ Reverse Dutch Weave mesh belt

Application:

1. It is suitable for the filtration of plastic wire drawing machine, casting film machine and film coating machine, such as
plastic woven bag, plastic film and so on.
2. In acid, alkali environment conditions sieving and filtering.
3. Petroleum industry as mud mesh.
4. Chemical fiber industry as screen mesh.

5. Plating industry as acid cleaning mesh.
6. Widely used in aerospace, cachinery, plastic products,research and plastic melt filter,molding machine belt type filter conveyor industries.

Advantage:

1 . High quality, Durability,Sturdiness,Abrasion resistance.

2. the automatic instant mesh belt filters replace filter without any manual operation.
3. the material flow never fluctuates.
4 .no waste and less consumption of raw materials.
5. consists of 10 meters or 20 meters filter belt, belt box and electric control system.
6. non-stop working production and absence of material fluctuation while exchanging screen.

Mesh	Wire Diameter (mm)	Thickness (mm)	Width (cm)
45x15	0.45x0.6	1.75	8-85
72x15	0.45x0.55	1.7	8-85
120x16	0.35x0.45	1.36	8-85
132x17	0.3x0.45	1.3	8-85
152x24	0.3x0.40	1.2	8-85
160x18	0.28x0.45	1.27	8-85
200x40	0.15x0.27	0.7	8-130
260x40	0.15 x0.27	0.65	8-130
300x40	0.15 x0.27	0.65	8-130
360x40	0.13 x0.27	0.6	8-130
Special specification we can produce according to customer's requirements

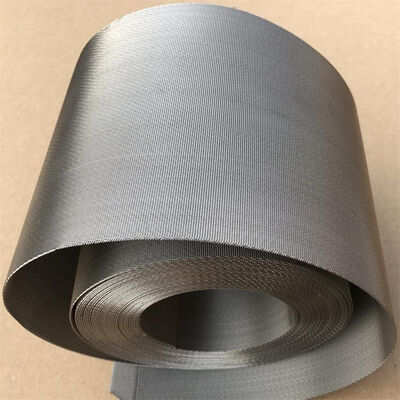

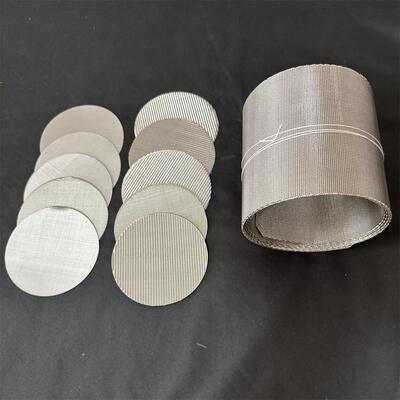

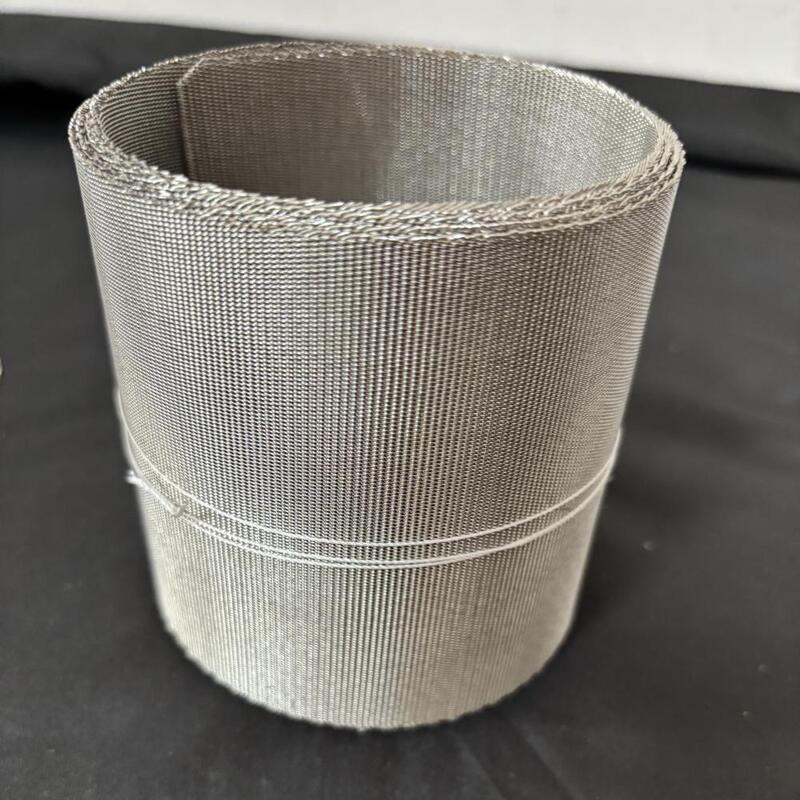

Products show:

201 304 Stainless Steel Reversed Twill Dutch Weave Wire Mesh Extruder Screen Belt Filter Belt for Continuous Screen Changer 1

201 304 Stainless Steel Reversed Twill Dutch Weave Wire Mesh Extruder Screen Belt Filter Belt for Continuous Screen Changer 2

201 304 Stainless Steel Reversed Twill Dutch Weave Wire Mesh Extruder Screen Belt Filter Belt for Continuous Screen Changer 3

201 304 Stainless Steel Reversed Twill Dutch Weave Wire Mesh Extruder Screen Belt Filter Belt for Continuous Screen Changer 4
